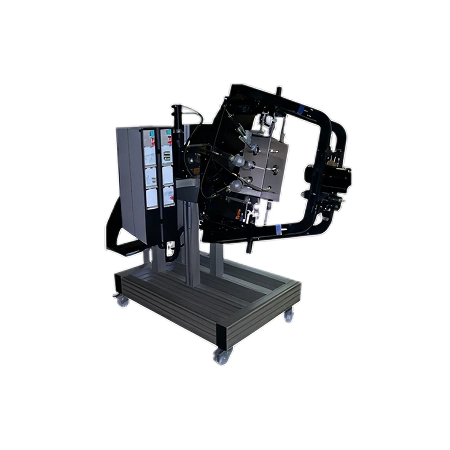

PVT Cell 250 ml 1000 bar Gas
PVT Cell 250 ml 1000 bar Gas
The PVT Gas 250–1000 system is designed to determine and measure the Pressure-Volume-Temperature (PVT) behavior of reservoir fluids such as condensate gas. When used in combination with the GAS 10000 T Gasmeter, it enables accurate measurement of key fluid properties, including dew point pressure, gas compressibility factor (Z-factor) across varying pressures and temperatures, and hydrocarbon phase volumes at equilibrium conditions.
The PVT Gas 250–1000 system is designed to determine and measure the Pressure-Volume-Temperature (PVT) behavior of reservoir fluids such as condensate gas. When used in combination with the GAS 10000 T Gasmeter, it enables accurate measurement of key fluid properties, including dew point pressure, gas compressibility factor (Z-factor) across varying pressures and temperatures, and hydrocarbon phase volumes at equilibrium conditions.
The system also allows calculation of the gas-oil ratio (GOR) in Sm³/m³ by measuring liberated gas using the gasmeter alongside liquid volume measurements within the high-pressure cell. It is capable of analyzing light hydrocarbon mixtures with very high GOR values exceeding 20,000 Sm³/m³, as well as slightly acidic fluids that may contain H₂S or CO₂, making it suitable for a wide range of reservoir conditions.
